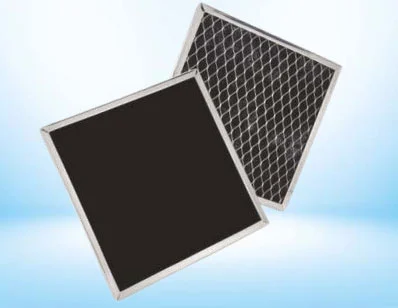

Activated Carbon Filter
At Map Filters India Pvt. Ltd. our Activated Carbon Filters stand as a testament to our commitment to providing cutting-edge air purification solutions . With precision engineering and advanced technology, these filters efficiently combat gaseous pollutants, odours, and volatile organic compounds (VOCs).
Featuring a specialized bed of activated-carbon, our Activated Carbon Filters boast remarkable adsorption capacity, effectively neutralizing unwanted smells and harmful chemicals from the air. Whether it's commercial kitchens or laboratories, industries facing unique air quality challenges find reliable and effective solutions in our Activated Carbon Filters
These filters not only improve indoor air quality but also contribute to a healthier and more pleasant environment for occupants, reflecting Map Filters India Pvt. Ltd.'s dedication to customer satisfaction and superior air purification technology.
| TECHNICAL PARAMETERS | |
| Efficiency | 99.997% for 3 micron |
| Type | Box Type / Flange Type |
| Casing MOC | Aluminum Extruded Profile / Gl / SS 304 |
| Media | Micro Glass Fibre Paper (Make: Hollingsworth & Vose, USA} |
| Working Pressure | Initial Pressure Drop - 25mm of WC Final Pressure Drop - 50 to 70mm of WC |
| Support Rod | 5mm Solid Al Rod |
| Operating Temperature | Ambient |
| Sealant | Epoxy or Polyurethane resin |
| Separator | Micro Glass Paper Ribbon |
| Washable | No |
| Gasket MOC | Neoprene or Silicon |
| STANDARD SIZES | |
| 305 x 305x50/150/300mm | 915 x 760x50/150/ 300mm |
| 610 x 305 x 50/150 /300mm | 915x915 x 50/150 / 300mm |
| 610 x 610 x 50/150 /300mm | 1220x610x 50/150 / 300mm |
| 760 x 610 x 50/150 /300mm | 1220x915 x50 / 150 / 300mm |
| * 5mm thick gasket on all side | |
Application
• Pharmaceutical Industry
• Chemical Research Laboratory
• Electronic Industry
• Semi-Conductor Production
• Food Processing Industry
